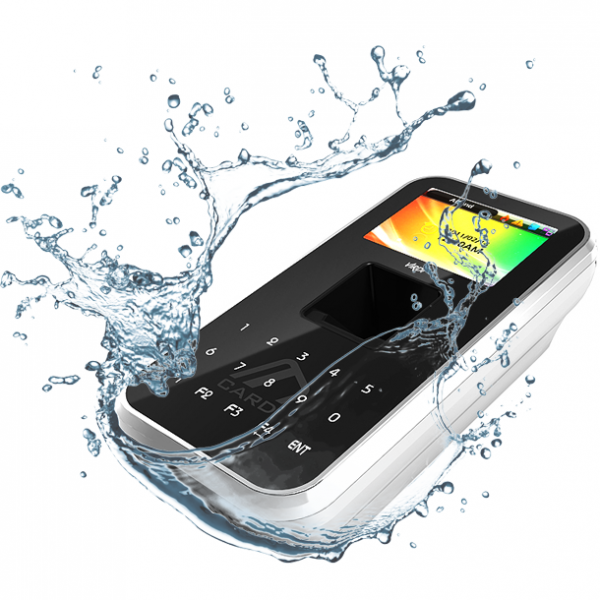

IP65 Fingerprint / Card Terminal
An evolution in fingerprint terminal technology,
incorporating state of the art design, elegant looks and
a robust IP65 rated housing.

Detail Specification AC-5000 PLUS

CPU ARM, 533MHz CPU Memory 128MB RAM + 32MB FLASH Memory
LCD 2. 8” Color LCD Max Users 20,000 (1:1)15,000 (1:N)
Power Consumption 12V, Max 350mA (4. 2W)
Communication TCP/IP, Wiegand In/Out,
RS485, RS232
Log Capacity 64,000
Dimension 88 x 175 x 43. 5 mm Certificates KC, CE, FCC, RoHS
RFID Card Option 125KHz EM / 13. 56MHz Smart Card / Desfire / Felica / HID Prox(optional) / HID iClass(optional), SAM Slot
